The automatic STICK
fire extinguisher

S T I C K

Patent : 10-1857775 Design Patent : 30-0907732
Scroll
Product Stick
Feature

New Standard of
Fire Extinguishing System
in the World!

  • Feature 01

    Smart Auto
    Fire Extinguishing

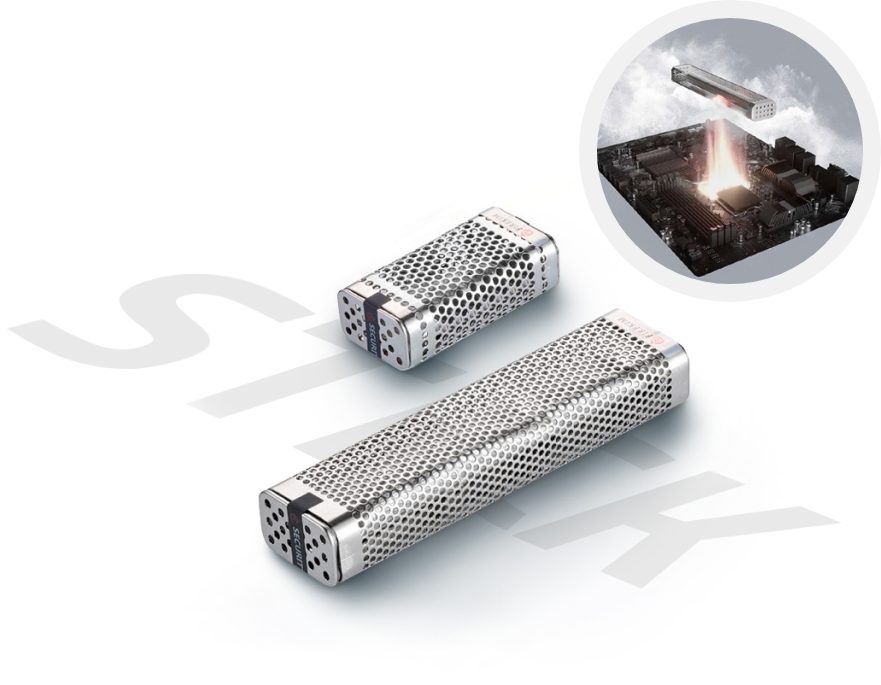

    The STICK fire extinguisher is a smart automatic product whose stick fire-extinguishing capsule automatically detects the temperature in a space where the interior temperature reaches 100-110℃, and then instantly discharges over 90% of its fire-extinguishing chemical, spreading it throughout the area of protection while extinguishing by cooling and smothering, pushing out the air in the space and capturing the heat.

  • Feature 02

    Immediate and
    Sure Fire Extinguisher

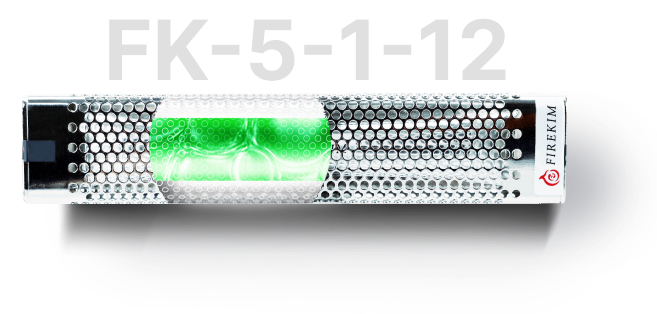

    The automatic STICK fire extinguisher uses FK-5-1-12, the best eco-friendly fire-extinguishing chemical in the world that can be used continuously while not being affected by global greenhouse gas reduction policies.

    • Activation temperature
      100°C ~ 110°C
      212°F ~ 230°F
    • Capsule reaction speed
      90% discharge in 1 second
    • KFI certification completed
      Certified by the Korea Fire Institute (KFI) Fire extinguishing system for small spaces; the first of its kind in the gas industry
    • Uses FK-5-1-12
      Extinguishes by smothering with outstanding electrical insulation by shutting off the cooling oxygen as it vaporizes and absorbs heat
    • Easy to use
      Easy to use regardless of gender or age
    • Lightweight
      43.5g of STICK130
  • Feature 03

    Innovative Design

    There is no design without purpose in the automatic fire extinguishing system that will evolve the paradigm of fire prevention through innovativeness, which helped it to win the [Design Award] at the iF Design Award 2019. It features numerous discharge holes for the fire-extinguishing chemical to be sprayed and propagated quickly to put out a fire and comes in light, compact sizes to fit perfectly in the palm of your hand for simple installation and convenient management.

SPECIFICATION It is possible to design the activation time tailored to customer requirements

Fire-extinguishing tools for small spaces

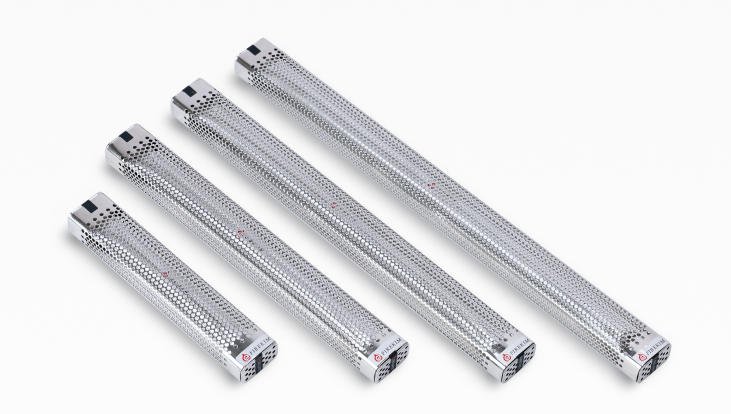

Model Size(mm)
(W x H x L)		 Volume of protection (NFPA) Max-height for installation Product weight Expiration Types of fire for application
FSC130 25 x 15 x 130 0.018㎥ 0.4m 46.5g 7 Years A-List,

B-List,

C-List
FSC200 25 x 15 x 200 0.031㎥ 0.7m 68.7g
FSC250 25 x 15 x 250 0.041㎥ 0.7m 84.5g
FSC300 25 x 15 x 300 0.050㎥ 0.7m 100.0g
APPLICATION
  • Electrical panel/switch
  • Server Room, UPS, etc.
  • Energy Storage System
  • Ship
  • Large drone
  • Power plant
