FIREKIM ES

The automatic STICK

fire extinguisher

R E D B L O C K

Brand: 40-1675683 Design: 30-1067030

Scroll

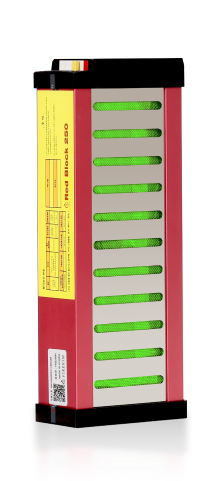

Product Red Block

Feature

New Standard of
Fire Extinguishing System
in the World!

Feature 01
FOR MIDLE-SCALE
INDUSTRIAL SPACE

It is a product applicable to mid- to large-sized spaces such as electrical panels, switches, transformers, ESS rooms, ships, large drones, UPS, and power plants.

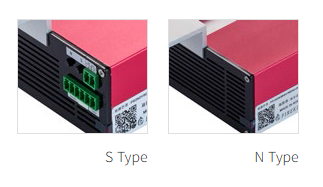

S Type
A product designed to give buzzers and signals at points of contact and activation of fire-extinguishing capsules to users through a feature that monitors abnormal signals such as changes in smoke concentration, temperatures higher than a certain level, etc.

N Type
A product designed based on the existing “STICK” product to suit any mid- to large-sized protection volumes.
Feature 02
Immediate and sure
Fire extinguisher

It extinguishes fire within the installation volume as it activates within 3 seconds and discharges over 90% of the fire-extinguishing chemicals within 30 seconds to ensure that the fire is completely out.
- Activation temperature
  In 3 Second Activation
- Capsule reaction speed
  In 30 Second Discharge over 90%
Feature 03
Automatic
Release System

RED-BLOCK can be selectively installed as either S-Type or N-Type, depending on the equipment and facilities.

The S-Type is equipped with temperature and smoke detection sensors, allowing notifications to the central control system when the preset temperature and smoke density are reached.
The N-Type is a sensor-free product that automatically responds to temperature changes, releasing the extinguishing agent without requiring additional devices. It is a non-powered type system.
- S-Type Features
  Temperature and Smoke Detection Sensors
  Automatic Fire Extinguisher
- N-Type Features
  Sensor-Free Product
  Automatic Temperature Response
  Non-Powered Type

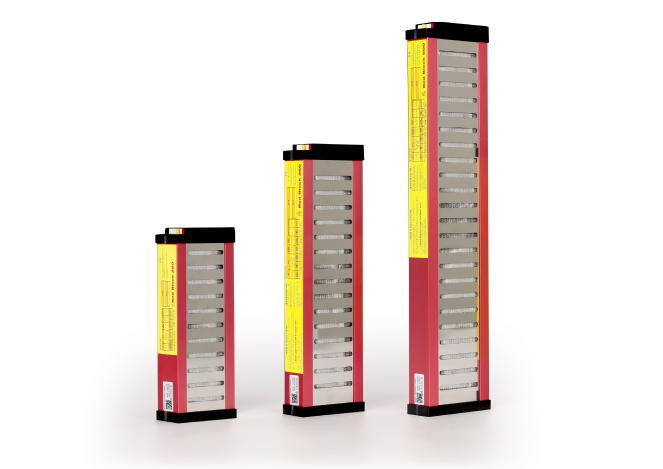

SPECIFICATION It is possible to design the activation time tailored to customer requirements

Fire-extinguishing tools for small spaces

Model	Size (W x H x L)	Product weight	Volume of protection (NFPA)	Max-height for installation	Product voltage / Power consumption	Durability / Product Warranty	Types of fire for application
FRB250N	103 x 43 x 250	1.1kg	0.09㎥	0.8m	No power	S type 5 Year N type 5 Year	A-List B-List C-List
FRB250S	103 x 43 x 250	0.9kg	0.09㎥	0.8m	DC 24V / 85mA
FRB350N	103 x 43 x 350	1.6kg	0.36㎥	1.0m	No power
FRB350S	103 x 43 x 350	1.3kg	0.36㎥	1.0m	DC 24V / 85mA
FRB500N	103 x 43 x 500	2.7kg	1.215㎥	1.5m	No power
FRB500S	103 x 43 x 500	2.3kg	1.215㎥	1.5m	DC 24V / 85mA
