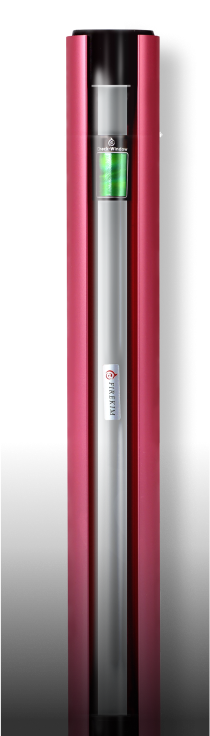

Product Big Stick
Feature

New Standard of
Fire Extinguishing System
in the World!

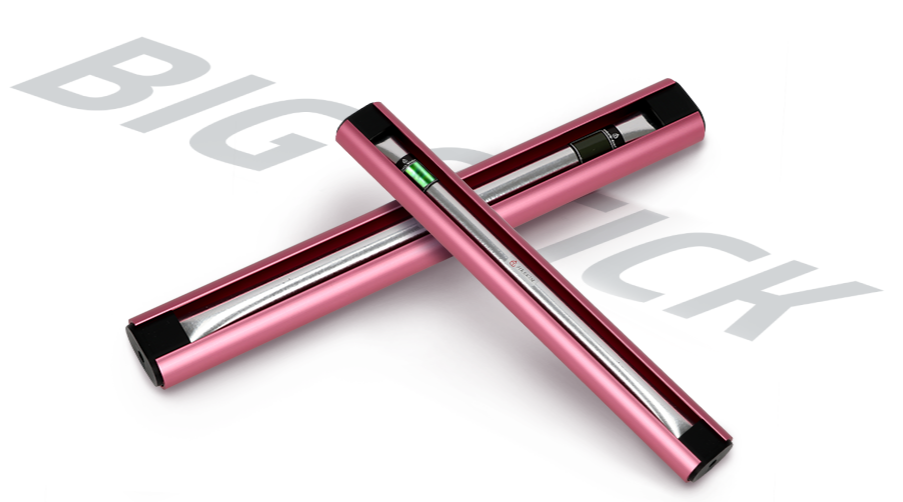

  • Feature 01

    Medium and large
    specialized products

    · This product is specialized for medium and large spaces, leveraging the advantages of STICK.
    · It is possible to verify the normal status of the extinguishing agent quantity
    · This product is specialized for medium and large protection volumes and is designed for bulk supply.

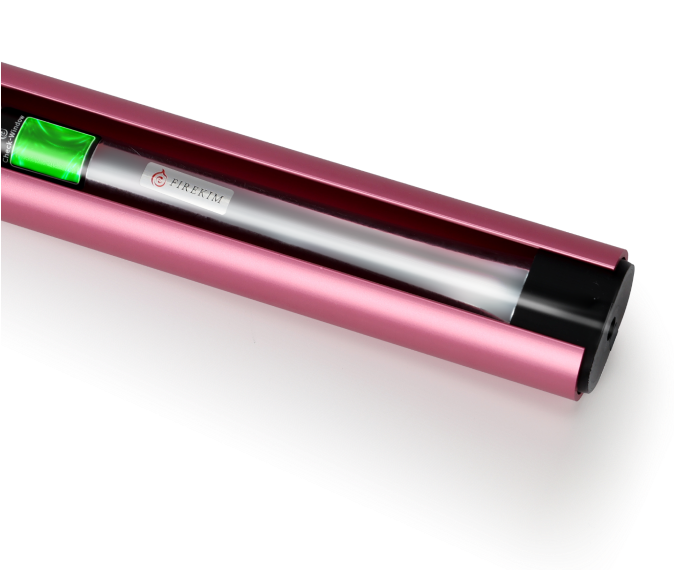

  • Feature 02

    Medium and large capacity fire
    extinguishing stick

    · This product is optimized for firefighting, discharging over 90% of the extinguishing agent within 10 seconds.
    · When the temperature reaches approximately 105℃ ±5℃, the extinguishing agent is automatically discharged, allowing the fire to be extinguished in its early stages and protecting valuable lives and property.

    • Automatic Fire Suppression
      Automatically discharges when the temperature reaches approximately 105℃ ±5℃.
    • Optimized for Fire Suppression
      90% discharge in 10 second

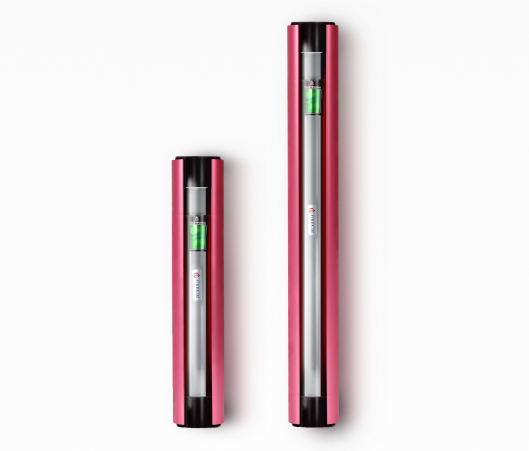

SPECIFICATION It is possible to design the activation time tailored to customer requirements

Model Size (W x H x L) Product Weight Volume of protection (NFPA) Max-height for installation Durability Types of fire for application
FBS200 34.4 x 20 x 206 67.6g 0.050㎥ 0.7m 5 Year A-List
B-List
C-List
FBS300 45 x 30 x 300 106.2g 0.091㎥ 0.8m
APPLICATION
  • Electrical panel/switch
  • Server Room, UPS, etc.
  • Energy Storage System
  • Ship
  • Large drone
  • Power plant
