FIREKIM ES

The automatic STICK
fire extinguisher

S T I C K

S E N S O R +

Brand: 40-1675684 Design: 30-1067031

Scroll

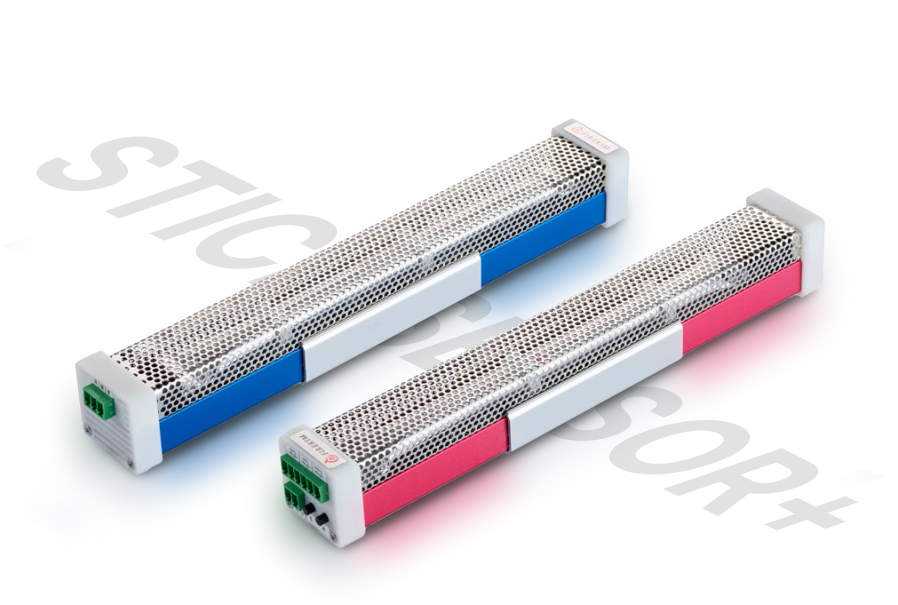

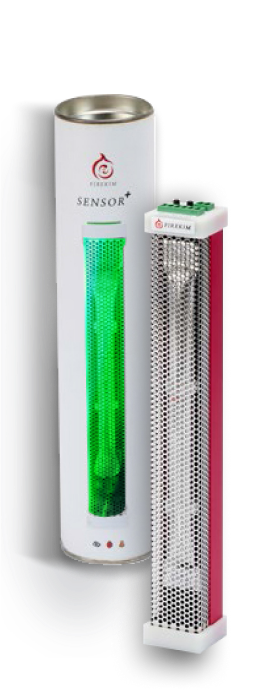

Product stick Sensor +

Feature

New Standard of
Fire Extinguishing System
in the World!

Feature 01
Smart Auto
Fire Extinguishing

STICK SENSOR+ gives buzzers and signals at points of contact, and activation of fire-extinguishing capsules to users through a feature that monitors abnormal signals such as changes in smoke concentration, temperatures higher than a certain level, and humidity of the fire-extinguishing chemical in the installed environment.
Feature 02
Immediate and
Sure Fire Extinguisher
- Operating principle with Firekim’s exclusive know-how of the fire-extinguishing capsule itself responding to temperature and spraying
- “Zero” ozone depletion potential (ODP) thanks to the use of eco-friendly fire-extinguishing chemical
- Temperature sensor activated when the set temperature is reached (customer selects from among 50, 60, 70, or 80℃)
- Activation temperature
  In 3 Second Activation
- Capsule reaction speed
  In 30 Second Operating time
Feature 03
Automatic Release System
- Smoke sensor activated when the set smoke concentration is reached (customer selects from 1st to 4th stage)
- Simple reset using a switch
- Verify whether the fire-extinguishing capsule works

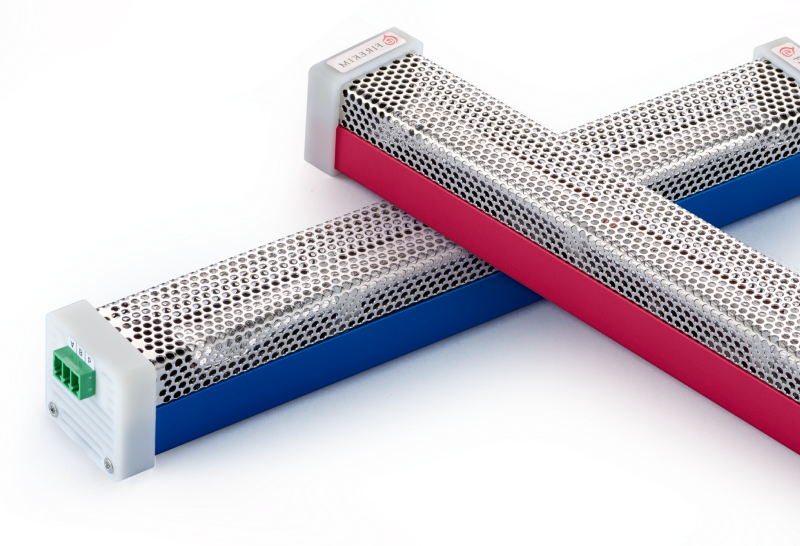

- S-Type Features
  Automatic fire extinguisher

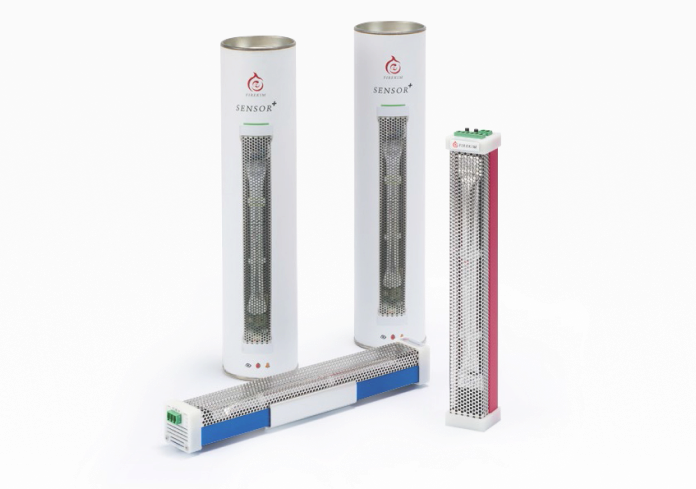

SPECIFICATION It is possible to design the activation time tailored to customer requirements

Fire-extinguishing tools for small spaces

Model	Size(mm) (W x H x L)	Product weight	Volume of protection (NFPA)	Max-height for installation	Durability	Product voltage / Power consumption	Types of fire for application
FSS220 B	28 X 27 X 220	135g	0.0268㎥	0.8m	5 Years	DC 24V / 85mA	A-List B-List C-List
FSS300 B	28 X 27 X 300	180g	0.041㎥	0.8m

· Automatically activates by detecting the set temperature and occurrence of smoke /
Alerts central control in case a specific temperature is reached or the system is activated

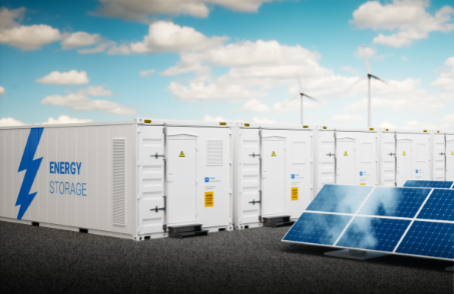

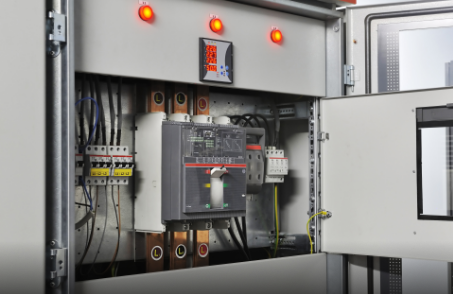

APPLICATION
